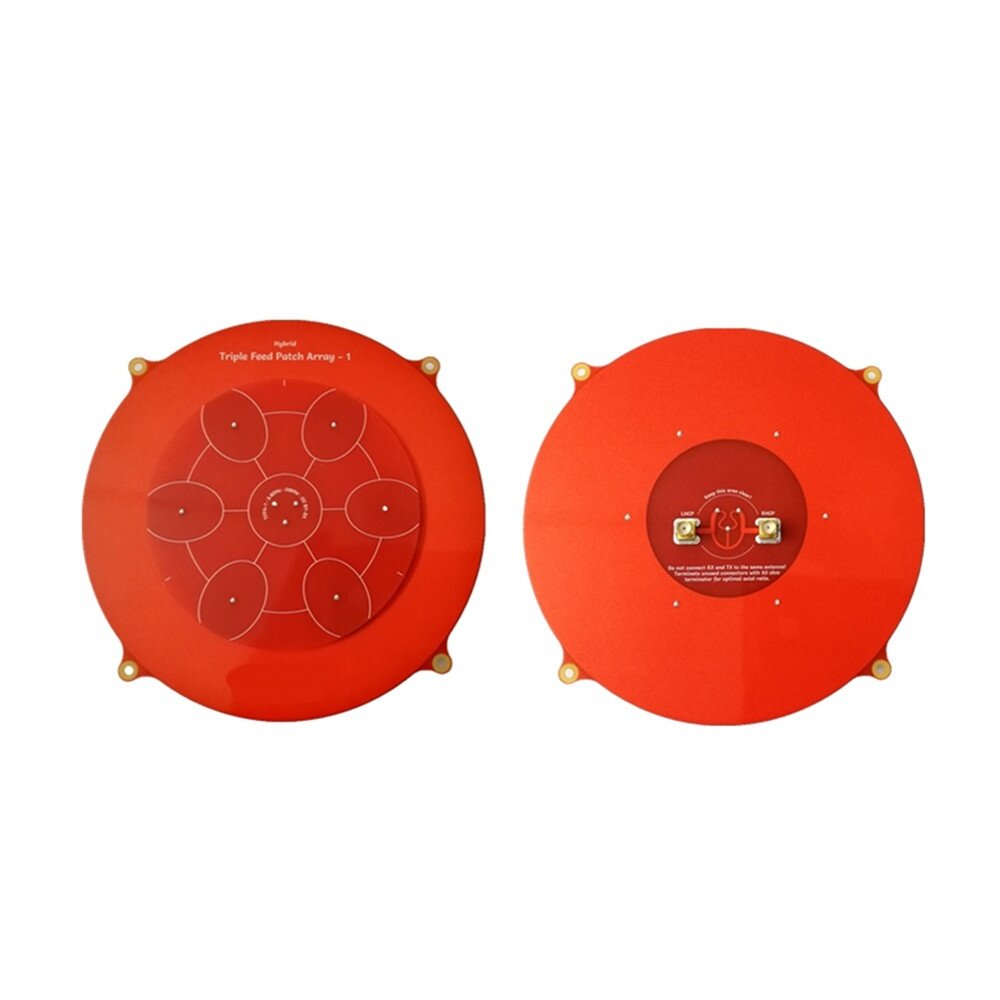

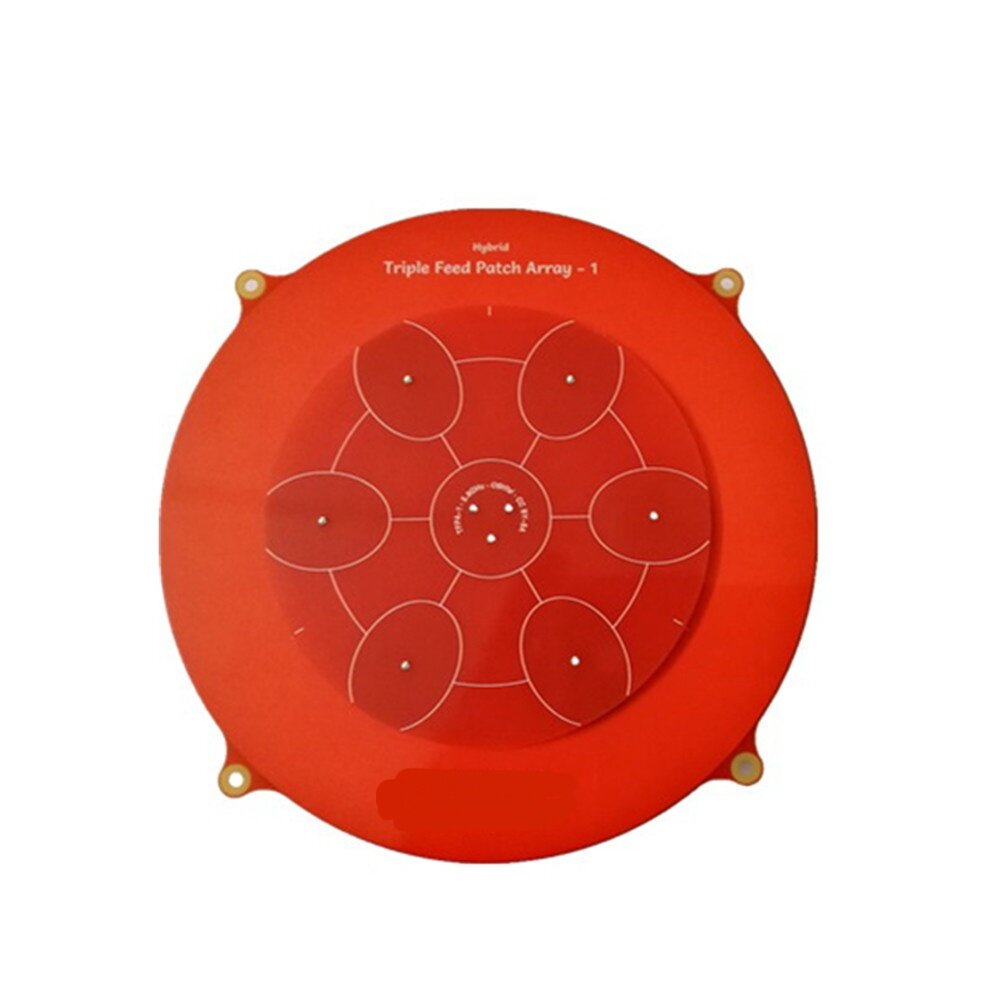

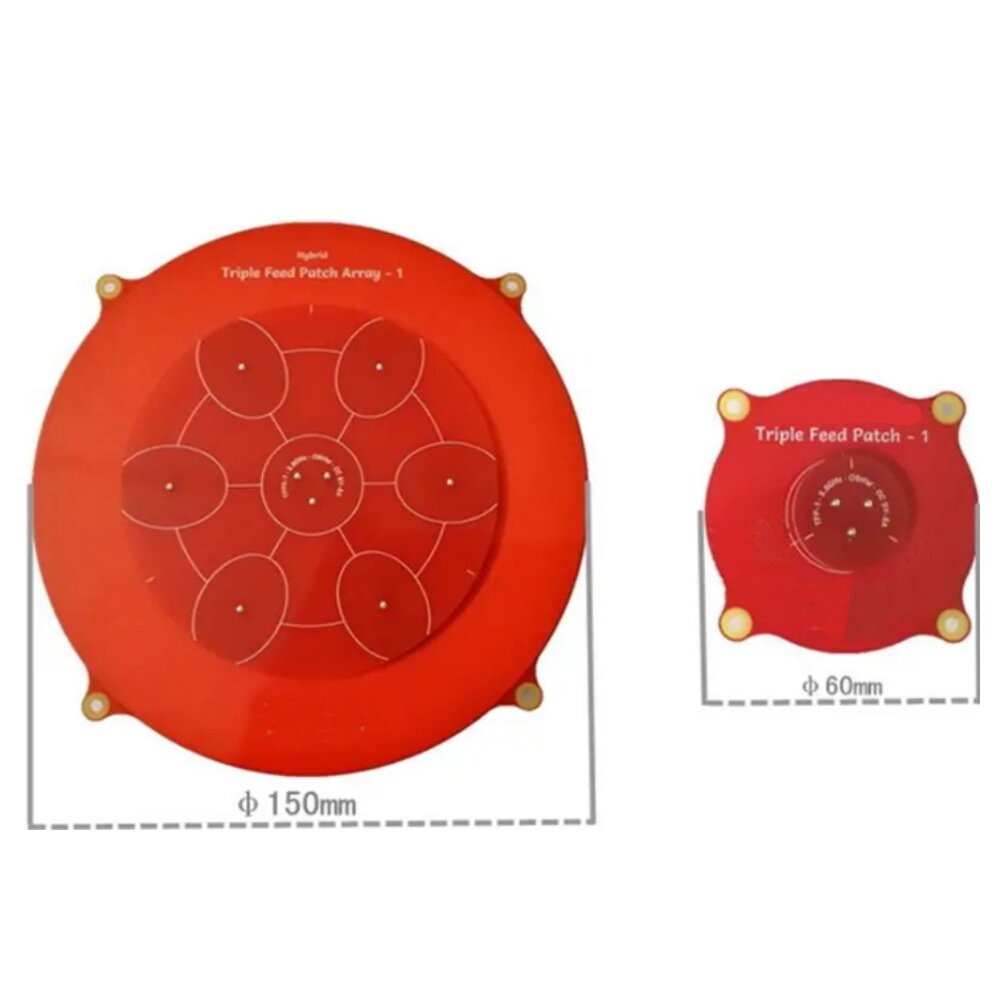

150mm Triple Feed Patch 5.8GHz 14dBi Pagoda Array FPV Antenna for RC Drone Eachine Skyzone Fatshark Goggles Monitor Ground Station

4.4

★★★★★

$39.00 /$47.58

*Name:
*Email:
*Phone:
*Quantity:
*Content:
Attachment:

Supports JPG, JPEG, PNG, PDF, EXCEL, WORD, RAR, ZIP, 7z formats

$12.99 /$47.58

Kunan rantiy Carrito man yapay

Tarjeta

Harkasqa rantiy

Qispichiy regalo

Llapa rantiykunapi qispichiy regalo

Apachiy rimanakuy

$9.9 astawan rantiykunapi qispichiy apachiy

Kutichiy rimanakuy

40 punchawkunapi kutichiy atikun, chaskisqaykimanta pacha. Kikin regalokuna mana kutichiy atikunchu. E-gift cardwan rantikunaqa cambiaylla atikun; mana devolución.

Qispichiy regalo

Roymallman haykuy, allin regalo rantiy qusqayki. Qusqaykimanta agradeseq. Regalokunata rantispayki, qispichiy regalota qusaq. Maskay munay regalokunata, rantiy qispichiy regalota chaskiy.

Apachiy rimanakuy

2 punchawkunapi apachimuyki. Sábado, domingo, fiestakunapiqa 2 punchaw astawan.5-7 punchawkunapi chaskiyki (lunes-viernes).Llapa suyukunaman apachimuyki, huk suyukunapi astawan tiempo.

1. Kutichiy & Cambio

Solo roymall.commanta rantikunata kutichiy atikun. Mana utilizasqa, original paquete.3-5 punchawkunapi devolución.Kikin regalokuna mana kutichiy atikunchu.Whatsapp: +8619359849471

2.Devolución

100% devolución original pago.Apachiy coste mana devolución.Whatsapp: +8619359849471

Specifications:

Center frequency: 5.8 GHz

Bandwidth: 660 MHz (5.47 u2013 6.13 GHz)

Matching: S11 < -30 dB, VSWR < 1.065

Axial ratio: 1.05(0.38dB)

Antenna gain: 14.4 dBi

Half power beam width: 30° (horizontal and vertical)

Radiation efficiency: 75%
Features:

1. Good radiation efficiency. Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz. Additionally, most array antennas have higher losses in the feed network. This design uses coupled patches to keep the feed network simple and reduce these losses.

2. Exceptionally good axial ratio, not just directly perpendicular to the patch but also off-center.

3. High gain, though not as high as the theoretical gain of an array with 7 uff45lements. This is because maximizing the gain would result in high sidelobes and a poor axial ratio.

4. Very low sidelobes, almost all energy is concentrated in the main lobe. This increases the width of the main lobe, at the expense of some gain.

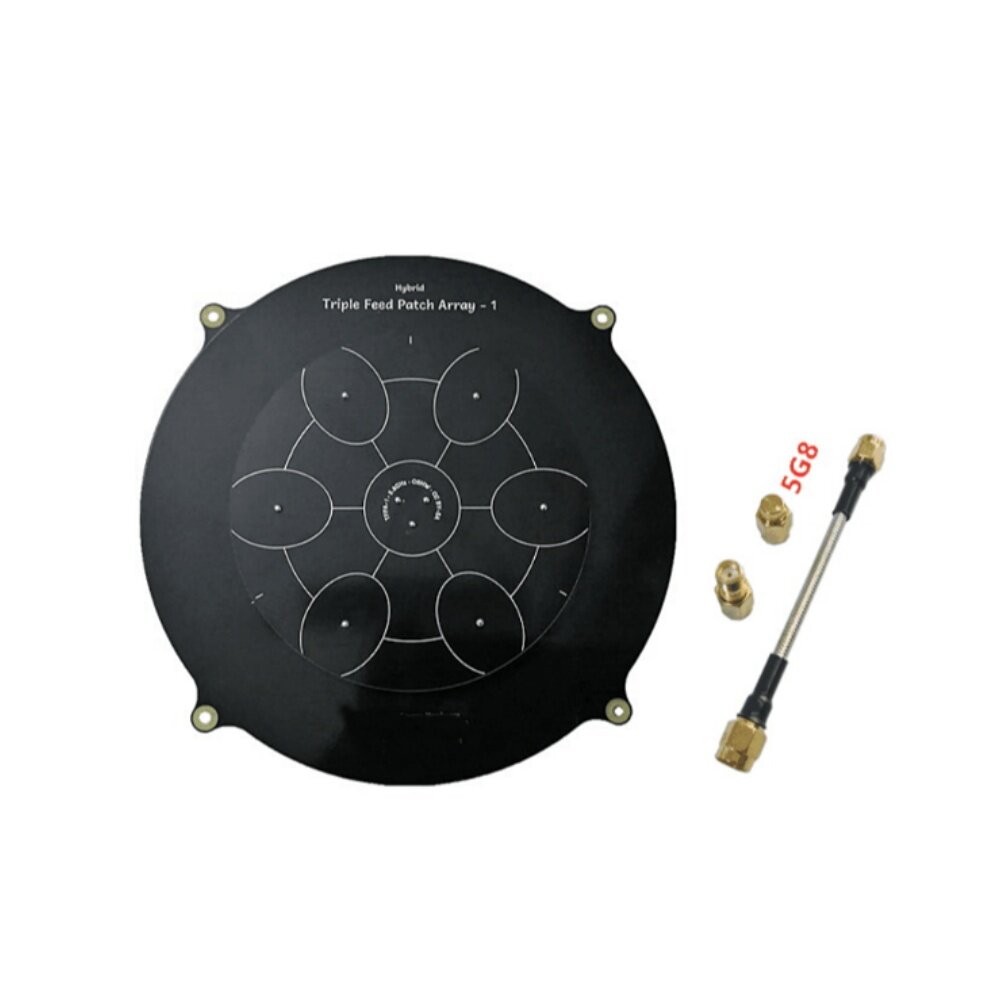

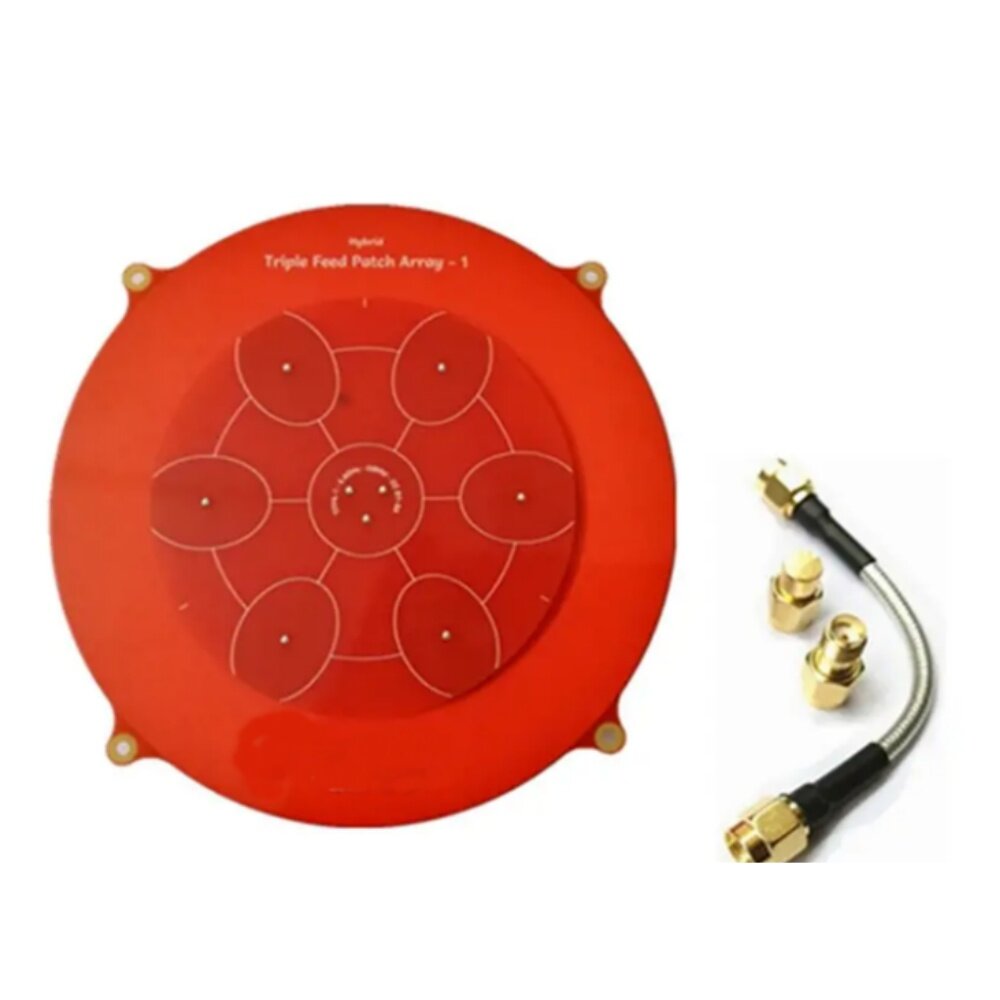

Package included:

1 x 150mm Triple Feed Patch 5.8GHz 14dBi Pagoda Array FPV Antenna

1 x extension cable

2 x adapter
